SFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/Mikrotik

Brand Name : UTOPTEK

Model Number : SFP-10G-T

Certification : CE FCC RoHs

Place of Origin : China

MOQ : 2pcs

Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.

Supply Ability : 2000pcs per week

Delivery Time : 1-2days

Packaging Details : 10pcs to one plastic plate

Transmission speed : 10G/5G/2.5G/1Gbps

Interface : Rj45

Distance : 30M

DDM Function : Support

Power supply : 3.3V

Working Temperature : 0~70℃

Ethernet Cable : Cat 5 or up level

Warranty : 1 year

Compatible : Cisco,Huawei,HP,H3C,Juniper,Extreme etc..

Contact Now

SFP-10G-T

10G BASE-T Copper RJ45 SFP Transceiver 30M

Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP
UTP cable Cat5,Cat6
Distance 30M
Data Rate (max) 10G/5G/2.5G/1Gbps
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Connector RJ-45
Warranty1 years
Compatible with Cisco, Huawei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box



Description:

SFP-10G-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T /1000base-T standards as specified in IEEE Std 802.3 . SFP-10G-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Features:

  • Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
  • Hot-pluggable SFP footprint
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10 Gigabit Ethernet over Cat 6a cable
  • Ambient Operating temperature: 0°C to +60°C; Industrial grade: -40~+85°C


Applications:

  • 10G/5G/2.5G/1Gbps Ethernet over Cat 5 cable
  • Switch/Router to Switch/Router Link
  • High speed I/O for file severs

Cable length:

Standard Cable Reach Host Port
10Gbase-T CAT6A 30m XFI
5Gbase-T/2.5Gbase-t CAT5E 50m 5GBase-R/2.5GBase-X
1000base-T CAT5E 100m 1000base-FX

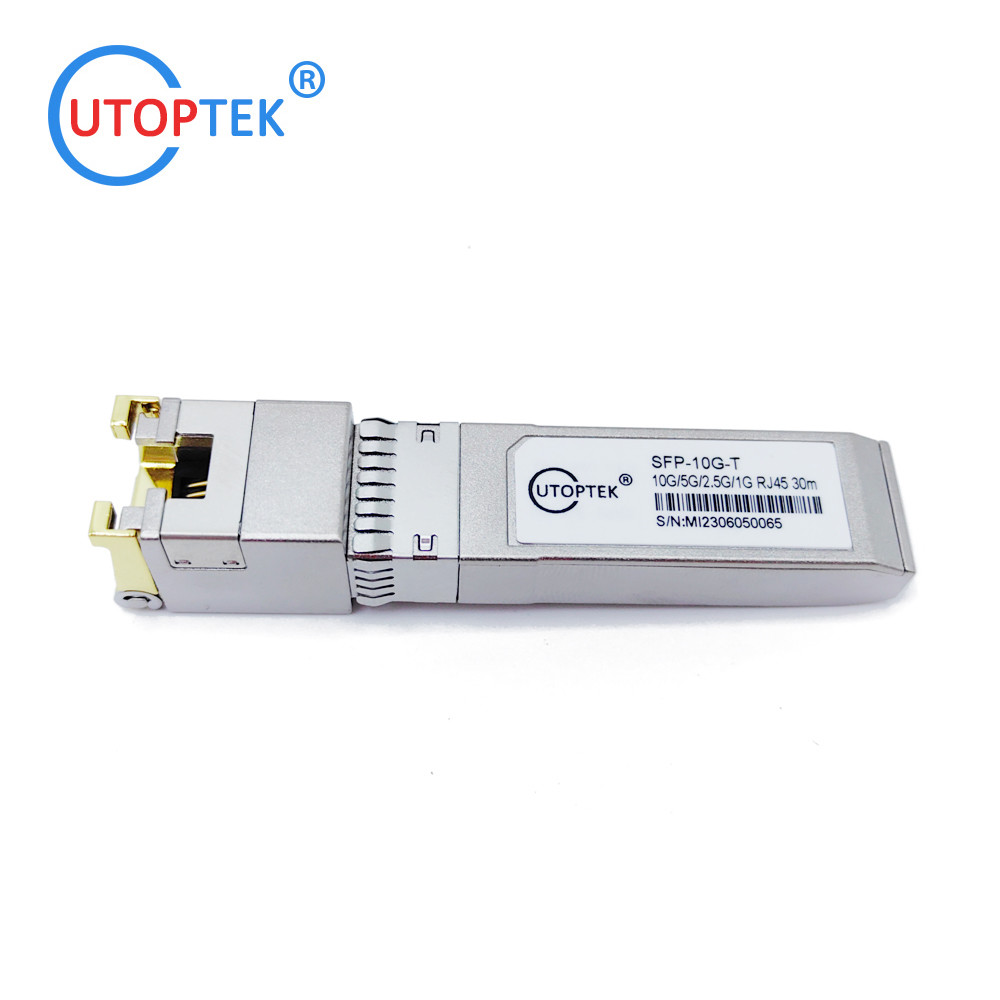

Products Picture:

​SFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/MikrotikSFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/MikrotikSFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/MikrotikSFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/Mikrotik

Factory Show:
SFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/Mikrotik


Mechanical Dimensions:

SFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/Mikrotik

SFP-10G-T 10Gb Copper RJ45 SFP modules 30m DDM compatible cisco/Huawei/Alcatel/Mikrotik

Ordering Information:

RJ45 SFP Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-FE-T 100Mbps SFP 100m / / / RJ45 0-70℃
SFP-GE-T 1000Mbps SFP 100m / / / RJ45 0-70℃
SFP-2.5G-T 2.5Gbps SFP 100m / / / RJ45 0-70℃
SFP-5G-T 5Gbps SFP 100m / / / RJ45 0-70℃
SFP-10G-T 10Gbps SFP 80m / / / RJ45 0-70℃
SFP-10G-T 10Gbps SFP 30m / / / RJ45 0-70℃
